Description

Isolation transformer is a kind of dry type transformer where primary is isolated from the secondary. Isolation Transformer has two windings per phase. Isolation between windings will provide protection against electric shock. Isolation Transformers are built with special insulation between primary and secondary to withstand a high voltage between windings. Isolation Transformers maintain equipment separation from power source. This will help users to keep sensitive items such as healthcare and laboratory equipment powered and protected. Single phase and three phase units are available in 60HZ or 50HZ designs.

Advantages

• Offer improved safety.
• Prevent the equipment from getting spikes and harmonics from the mains.
• Efficient due to noise reducing capabilities.
• Better power quality.
• Transfer energy from one source to another without any interruption.

Applications

• Generally suited for wide variety of applications: Computer networking equipment, CNC machines, etc.

Features

• Less noise.
• Can be used in either step-up or step-down.
• CSA Certified, File No. 0900242_0_000
• UL Listed, File No. 20121218-E38760

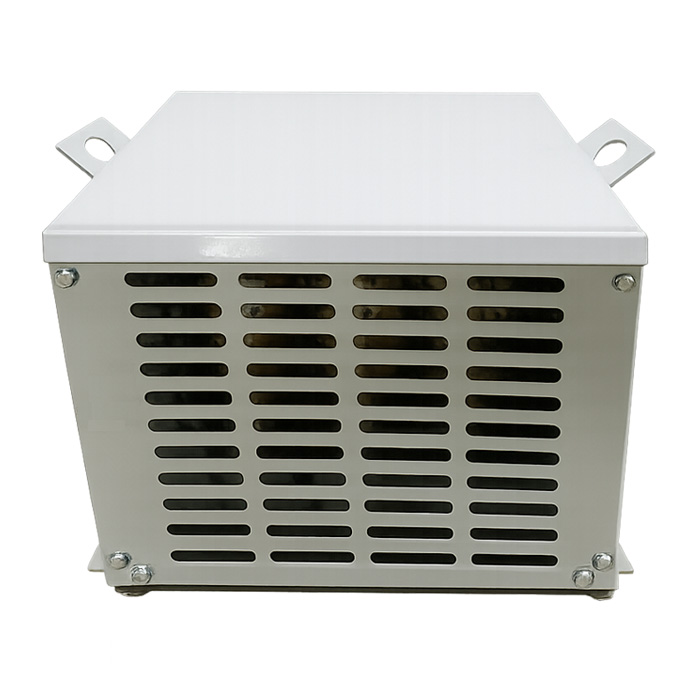

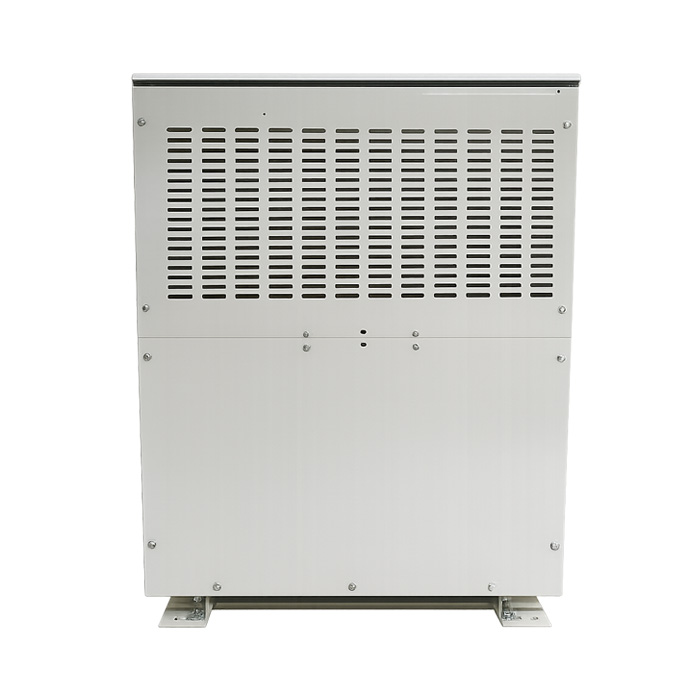

• Nema-1 enclosure suitable for indoor application. Nema-3R suitable for outdoor application.

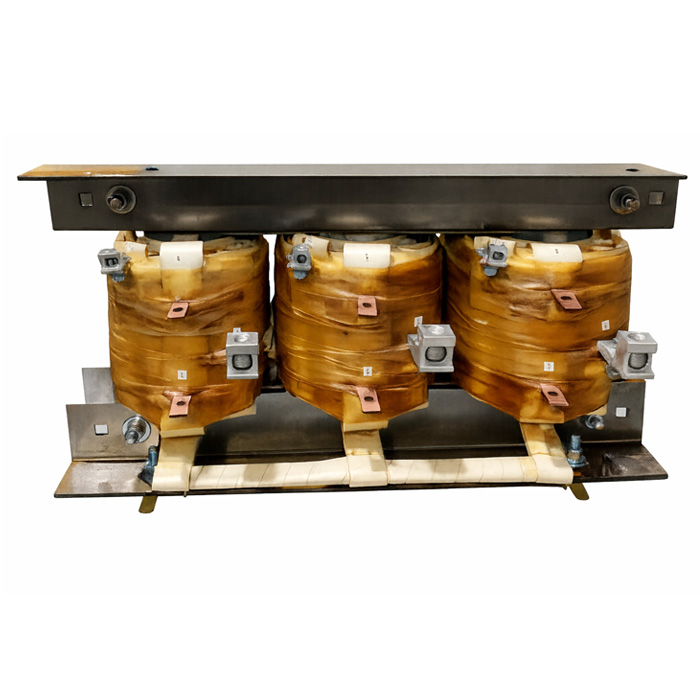

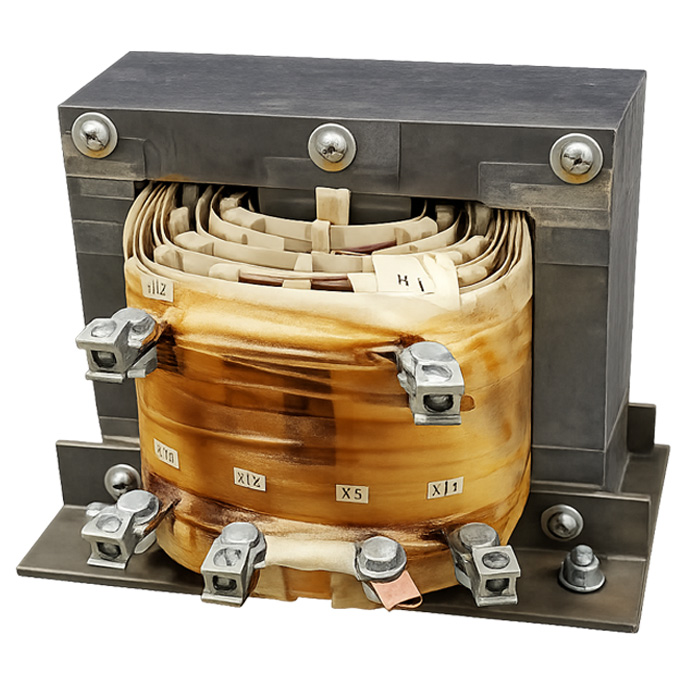

• Open type or enclosed type as per customer preference.
• Customs Auto transformers can be built when special voltage combination is required.

Detailed drawings are available upon request.
